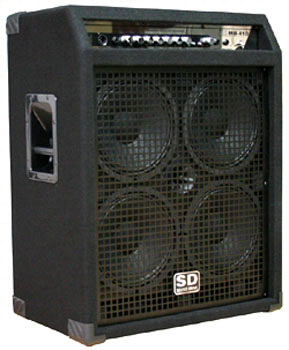

1. Direct Out
Balanced output, suitable for studio and “front-of-house”(live stage)
Mixing consoles (-12dB)
2. Input
This input jack is to accommodate both “passive” and “active” instruments.
3. Gain
This control adjusts the volume of input preamp section with clipping Indicator.
4. Enhancer
This controls adds a little lower midrange to help cut through the band.
5. Equalization
High – Active circuit and boosts or cuts high frequencies (+/-15dB)
Scope – Midrange Frequency control sets the area that is to be cut or boosted by mid range level control. (80Hz ~ 1.2kHz)
Hi Mid – Active circuit and boost or cuts mid frequencys (+/- 15dB)
from about 1.2kHz~3kHz
Lo Mid – Boost or cuts mid low frequencies (+/- 15dB)
from about 350Hz~1kHz
Low – Boost or cuts the bass response (+/- 15dB) from about 30Hz~300Hz
6. Ultra bass
Boost up switch for Low frequency response, about below 500Hz.
7. Compressor/Limiter
The switch for soft knee type limiter and compressor on off
(Its threshold is preset by he factory)
8. Master
Master volume control adjusts the level being sent to the power amplifier
9. Line out
This outputs are post of Equalizer preamp.
10. Head phone
Stereo Headphone jack
11. Power switch
This switch turns the complete unit on or off
|
