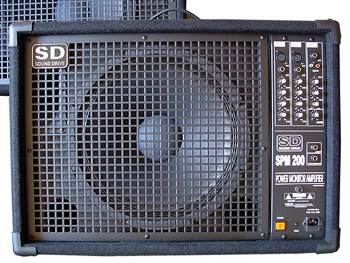

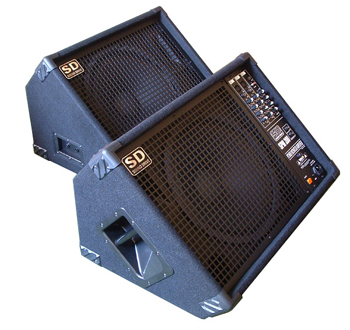

[SPM-200]

ACTIVE MONITOR SYSTEM

200W (RMS 8 Ohm,300W 4Ohm) 3 INPUT CHANNEL(2 MIC,1 LINE)

2 XLR & LINE INPUT CHANNEL,1 LINE & CD INPUT CHANNEL

15" 2WAY SPEAKER

KICBACK TYPE CABINET DESIGN

[SM-200]

PASSIVE SPEAKER

200W(RMS)400W (PROGRAM)

FEATURES

200W (RMS) POWER MONITOR SYSTEM

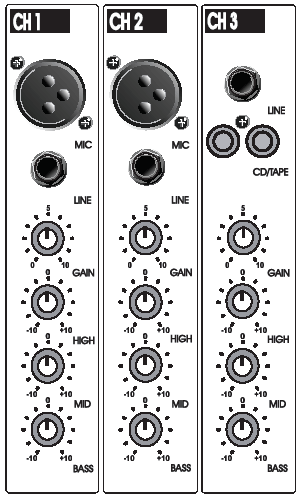

3 CHANNEL

  -2, MIC “XLR” Input & Line INPUT

    ACTIVE 3 BAND EQUALIZER

  -1, LINE & CD INPUT

    ACTIVE 2 BAND EQUALIZER

15” 2WAY PIEZO HORN TWEETER SPEAKER

LINE OUT JACK

EXT SPEAKER JACK (8 ohm)

KICKBACK TYPE DESIGN

SPECIFICATIONS

Power Ratings

  220w 80 ohm (RMS), 300W 4 ohm

  AC-220V 60Hz (Fuse:T3A 250V)

FREQUENCY RESPONSE

- 3dB @ 20Hz ~ 20kHz (POWER AMPLIFIER)

MIC CHANNEL

  HIGH    +- 15dB AT 10KHz

 MIDDLE +- 15dB AT 1KHz

 BASS    +- 15dB AT 100Hz

LINE CHANNEL

 HIGH   +-15dB AT 8kHz

  BASS   +-15dB AT 300Hz

SPEAKER

  15” WOOFER & PIEZO HORN TWEETER

DIMENSIONS

SPM-200 H,430mmxW.680mmxD.470mm

SM-200  H.430mmxW.580mmxD.470mm
