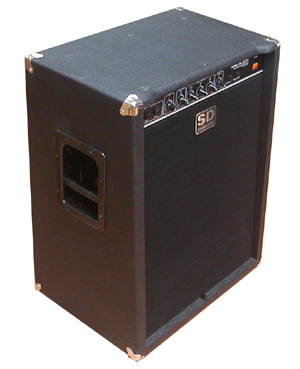

[SB-150(COMBO)]

150W (RMS) BASS AMPLIFIER

2 INPUT (HIGH & LOW ),ACTIVE 3 BAND EQUALIZER

WITH MID SWEEP CLIP INDICATOR,BULT IN COMPRESSOR

15" CUSTOM DESIGN BASS SPEAKER

LINE OUT JACK,HEAD PHONE JACK

EFFECT LOOP (SEND & RETURN)

HEAVY DUTY CASTER WHEELS

H,688mm x D,390mm x W,546mm





FEATURES

 High performance power amplifier section (150w / 8 Ohms)

 Excellent Active Equalization section

 LED clip for preamp

 Built in compressor

1. INPUT





- 2 INPUTS

 HIGH -30dB FOR PASSIVE INSTRUMENTS

 LOW -20dB FOR ACTIVE INSTRUMENTS



- AUX INPUT

 (FOR EXTERNAL CD, etc)

2. CONTROLS

 - INPUT GAIN CLIPPING INDICATOR

 - ADDITIONAL PRE GAIN TRIM CONTROL

 - 3 BAND ACTIVE EQUALIZATION

 - LOW GAIN +/-15dB

 - MID GAIN +/-15dB

 - HIGH GAIN +/-15dB

 - VARIABLE MID RANGE FREQUENCY CONTROL

   (80Hz ~ 1.2KHz)

 - MASTER VOLUME

3. EFFECT LOOP

 - 1 SERIAL - SEND, RETURN

4. OUTPUT

 - LINE OUT (1/4" MONO JACK)

 - HEADPHONE (1/4" STEREO JACK)

5. OTHERS

 - 15" 8ohm DYNAMIC BASS SPEAKER

 - WIDE SIDE HANDLE (FOR EASE CARRY)

 - CROMM MATAL CONER

 - CASTER WHEEL

 - AC 220V 60Hz, (FUSE T2.5A250V)

 - SIZE, 688x390x546
