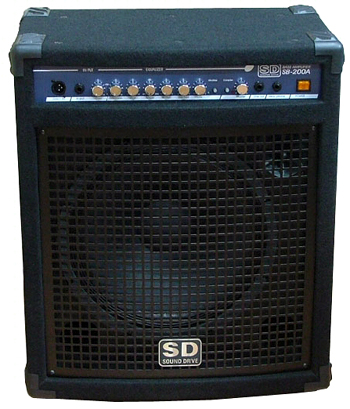

[SB-200A]

200W (RMS) BASS AMPLIFIER,4 BAND ACTIVE EQUALIZER

COMPRESSOR CONTROL (ON/OFF),PRE ENHANCER CONTROL,ULTRA BASS

,"XLR" DIRECT OUTPUT

15"+ TWEETER SPEAKER SYSTEM

LINE OUT JACK,HEAD PHONE JACK,EFFECT LOOP (SEND & RETURN)

HEAVY DUTY CASTER WHEELES

H, 640mm x W,550mm x D, 340mm



FEATURES - REAR PANEL

 EFFECTER LOOP

- 1 SERIAL-SEND,RETURN

 AC IN

- AC 220V 60Hz, (FUSE T2A250V)

- AV Power Cord receptacle type

 OTHERS

- Heavy-Duty Caster Wheels

- Wide side Handle (for easy & safety carry)

SPECIFICATIONS

 Power Ratings

200 Watts @ 4 ohms (internal cabinet)

 Frequency Response (Power amplifier)

-3dB @20Hz and 30kHz

 Sensitivity (full output under clipping, 8 ohms load 1kHz

Input jack : 120mV

Return jack : 5V

 Input Impedance

60k ohms ~ 800k ohm

 Output Impedance

Direct out (XLR) : 10k ohms

Effects Loop Send : 100 ohms

Line out : 10k ohms

 Signal to Noise Rato

-70dB (<10mV typical)

 Dimesions

550mm(W) x 340mm(D) x 640mm(H)

 Weight
